Product Detail

Brand Name: Bater

It had been got the China national anti-explosive electric institute certification,and its productions have many advantages such as safety,environment

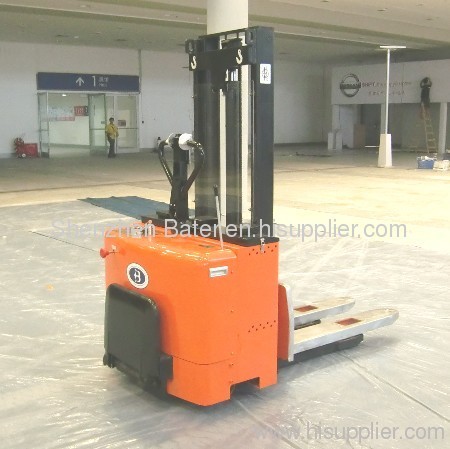

Product characteristics and applicability of CBDB stacking trucks with explosion-proof battery.

1.CBDB stacking trucks withexplosion-proof battery are widely used in petroleum,chemical industry,military,textile,warehouse,,the paint,pharmaceutical and other industries with contain flammable gas,liquid in and other explosion environment of 1division,2division.

2.Imported Italian sea general pump station,and make the goods lifting smooth powerful.This power unit set dc motor,gear pump,valve and pipe components in a body of.With small size,high reliability and steady,energe saving,noise reduction,environmental protection and other advantages.

3.Imported Italian marotta the drive wheels,configuration of the disc brake system,reliable strong power and stable performance.

4.Import electronic control system reaction intelligent,easily manipulated,high reliability,has the regenerative braking,reverse connect braking and stepless speed regulation,and other functions.

5.Retrofited explosion protection safetyvalve,it can be in hydraulic hose once failure cases goods will not fall quickly,ensure that operating personnel security of person

6.The large capacity of batteries,charging convenient and quick,lasting power

7.Imported Germany door frame channel steel,strong and security.

Specifications: (According to different type)

Nominal load capacity: 1000~2000kg

Load center distance: 600mm

Hoisting height: 156mm

Goods fork to lowest lever: 86mm

Goods fork length: 1150mm

Maximum lifting height: 2500~2900mm

Body minimum ground ctearance: 26mm

Maximum turning radius: 1540mm

Lift speed: 105/150, 91/128, 90/120, 560/600 mm/s

Vehicle dimension: 1990*1005*1950mm (L.W.H)
